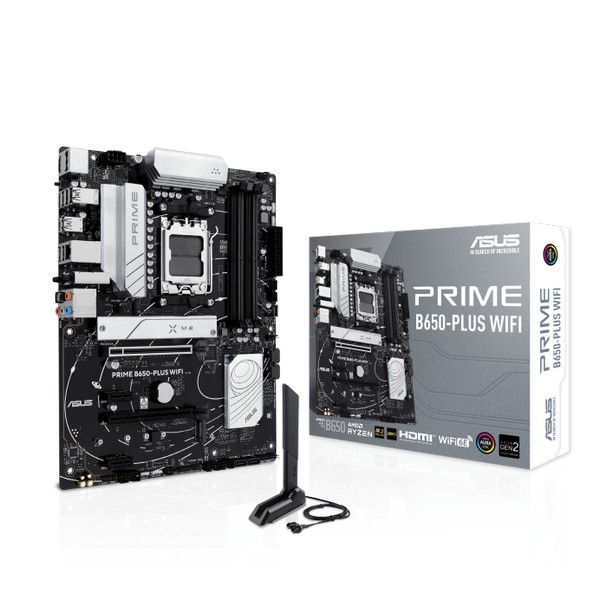

ASUS PRIME B650-PLUS WIFI AM5

Product Description:

The ASUS PRIME B650-PLUS WIFI motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors and DDR5 memory (up to 192GB). It offers high-performance computing with multiple M.2 and SATA storage options, PCIe slots, and a wide range of USB ports for connectivity.

Key Features:

• Socket: AM5
• Chipset: AMD B650
• Memory Type: DDR5/DIMM, 4 x Slots, Max 192GB
• Processor Support: AMD Ryzen 9000, 8000, 7000 Series
• Expansion Slots: 1 x PCIe 4.0 x16 slot x16, 1 x PCIe 4.0 x16 slot x8, 1 x PCIe 4.0 x16 slot x4, 2 x PCIe 4.0 x1 slots
• Storage: 2 x M.2 slots, 4 x SATA 6Gb/s
• USB Ports: Rear: 4 x USB 3.2 Gen 2; 2 x USB 3.2 Gen 1; 2 x USB 2.0 ports; Front: 2 x USB 3.2 Gen 1, 2 x USB 2.0 headers
• Back I/O Ports: 4 x USB 3.2 Gen 2; 2 x USB 3.2 Gen 1; 2 x USB 2.0; 1 x DisplayPort; 1 x HDMI; 1 x Vertical M.2 slot; 1 x Realtek 2.5Gb Ethernet; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack
• Internal I/O Ports: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 2 x M.2 slots 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 connector 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header 1 x SPI TPM header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
• Form Factor: ATX

[p/n 90MB1KP0-M0EAY0] SKU: I36007
