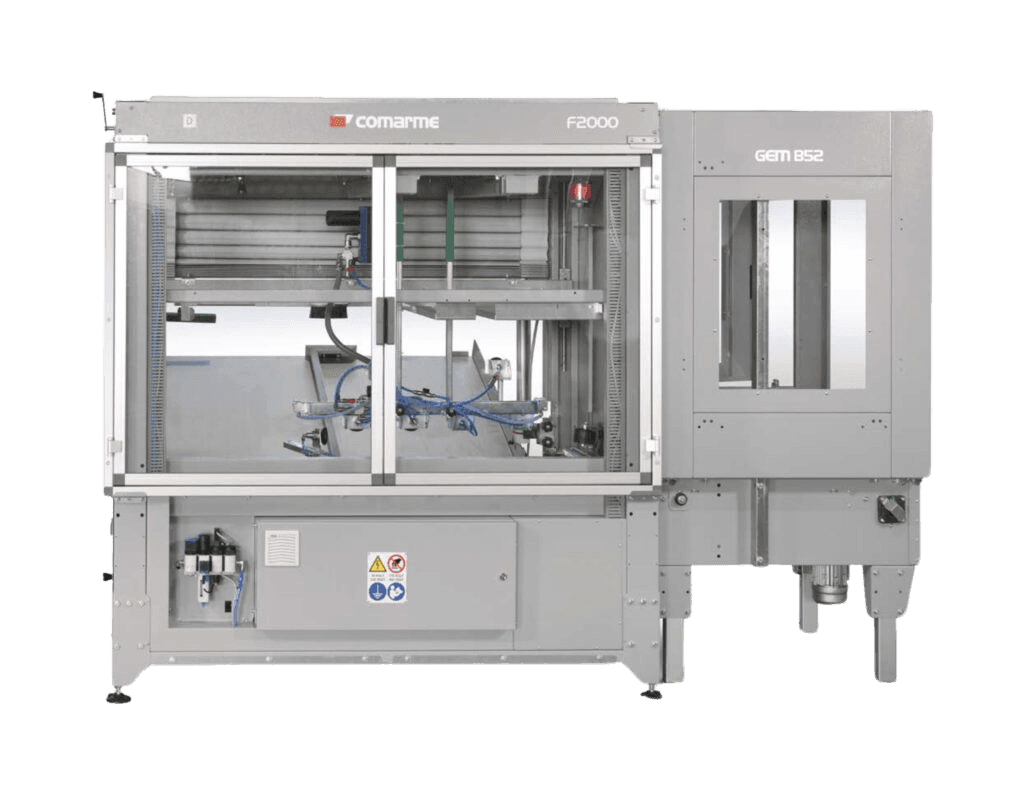

F2000 + GEM B52

Catalog Carton packaging machinery Case erectors F2000 + GEM B52

F2000 + GEM B52

In stock

Automatic carton erecting machine

Data sheet

Ask a question

Product
Certified

Official
Dealer

Guarantee
1 year

Description

The F2000 case former prepares the boxes with the 4 bottom flaps folded, taking them from the side magazine (Box loader). The bottom flaps are closed by adhesive tape and sent to the filling point. This carton erector setup perfect folded boxes, even in case with light cartons, thanks to the special for this machine designed folding device.

Any interference between the flaps during folding is completely eliminated. The compact dimensions allows the machine to be incorporated in existing lines or installed in a limited space.

Advantages

Efficient and accurate packaging process
High performance
Increasing labor efficiency
Reducing the cost of consumables

Specifications

Box loader unit capacity: 110 boxes either motorised loader for up to 270 boxes, on Request
Bottom flaps are sealed by adhesive tape (GEM B52), by Hot Melt (HM B520+HM B52P) either by gummed paper tape (GEM B520-GP) and sent to the filling point
Venturi system suction device for boxes withdrawa
Photocell kit to control the machine cycle
Digital Kite Touch Screen panel 7”
Electric cabinet with Siemens PLC
Motorized box loader for a capacity as follows:
CAR 2001 – 150 pcs / CAR 2002 – 220 pcs / CAR 2003 – 270 pcs
Caster wheels for min working table height 750 mm
F2000H model for boxes high 900 mm with top flaps open
Safety guards with access door

Box length: 220-600 mm
Box width: 100-500 mm
Box height: 100-500 mm
Output capacity: 840 boxes/hour
Pneumatic pressure: 7 bar
Total installed power: 4 Kw
