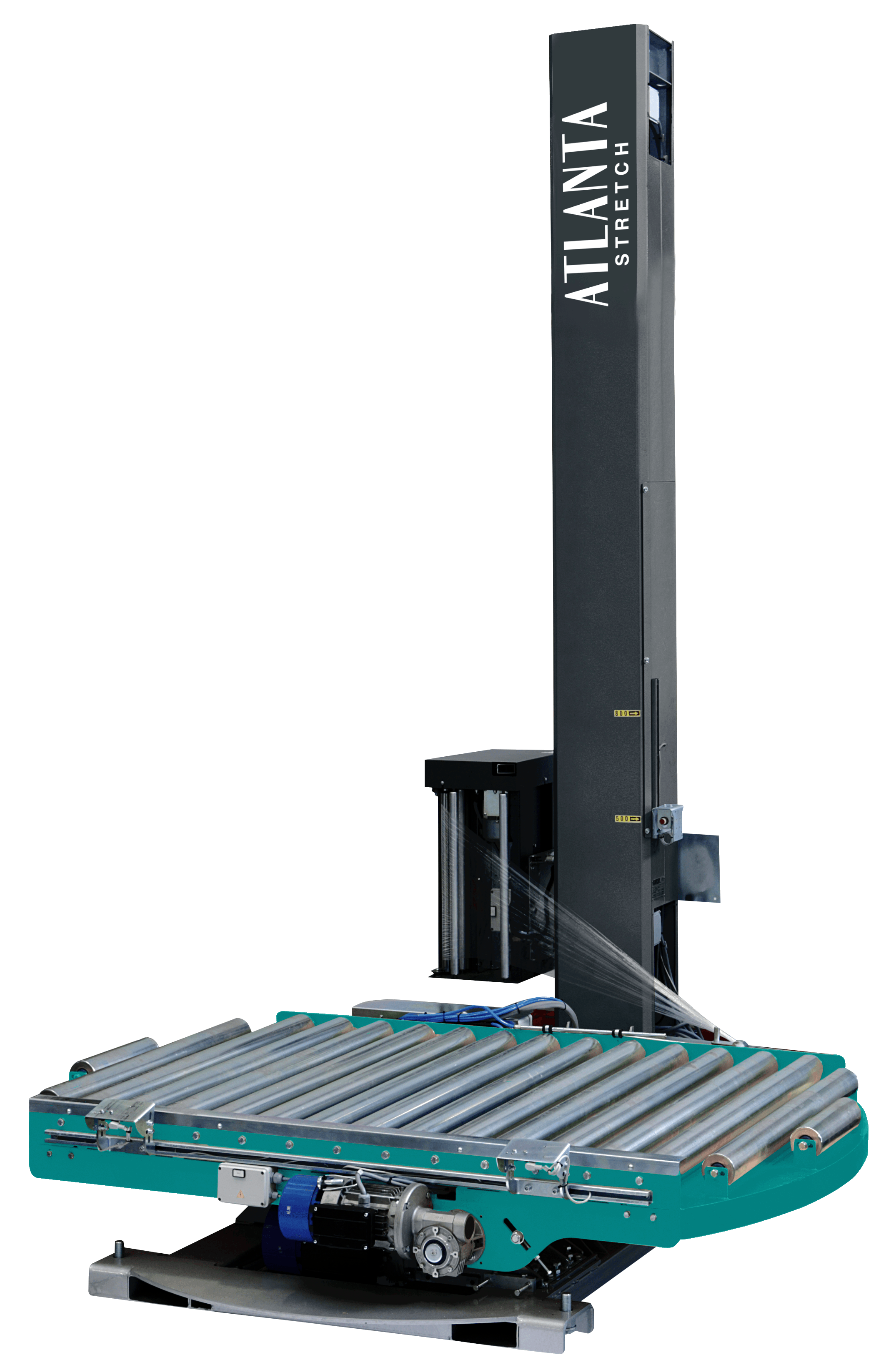

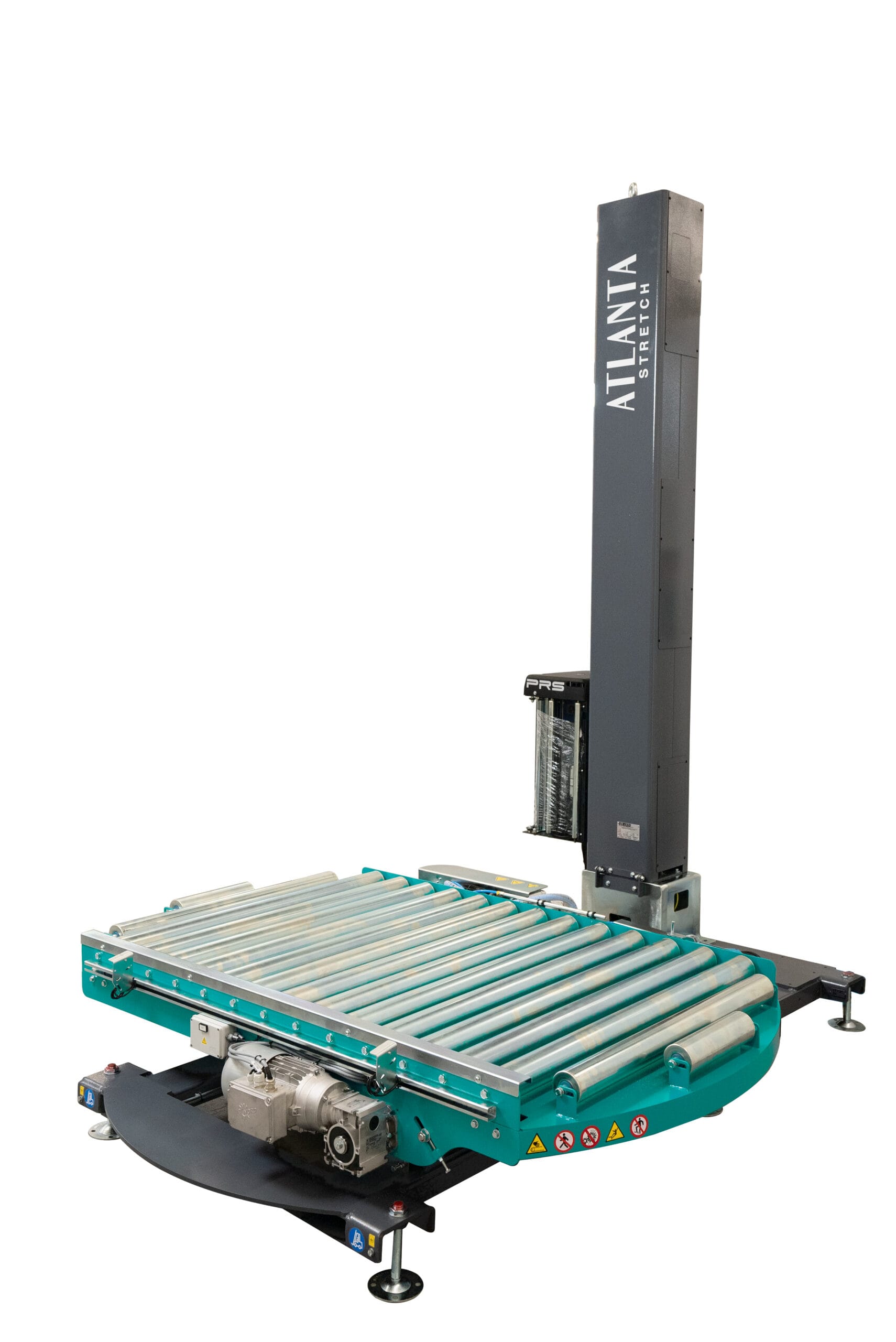

MYTHO A MAST
In stock
Catalog Description
Mytho A “mast version” is a high performance wrapping machine, specially designed for those situations where high throughput is required and installation space is limited.
This inline wrapping machine has been developed in accordance with the latest technical standards for mechanical, electrical and software design. The standard SIEMENS S7-1200 PLC with incorporated profinet, ensures that this machine will easily be integrated with your packaging line.
The combination of low maintenance costs and easy installation ensure this machine is an inexpensive solution for any industrial stretch wrapping requirement.
Advantages
- 5.7-inch touchscreen control panel with 7 programs

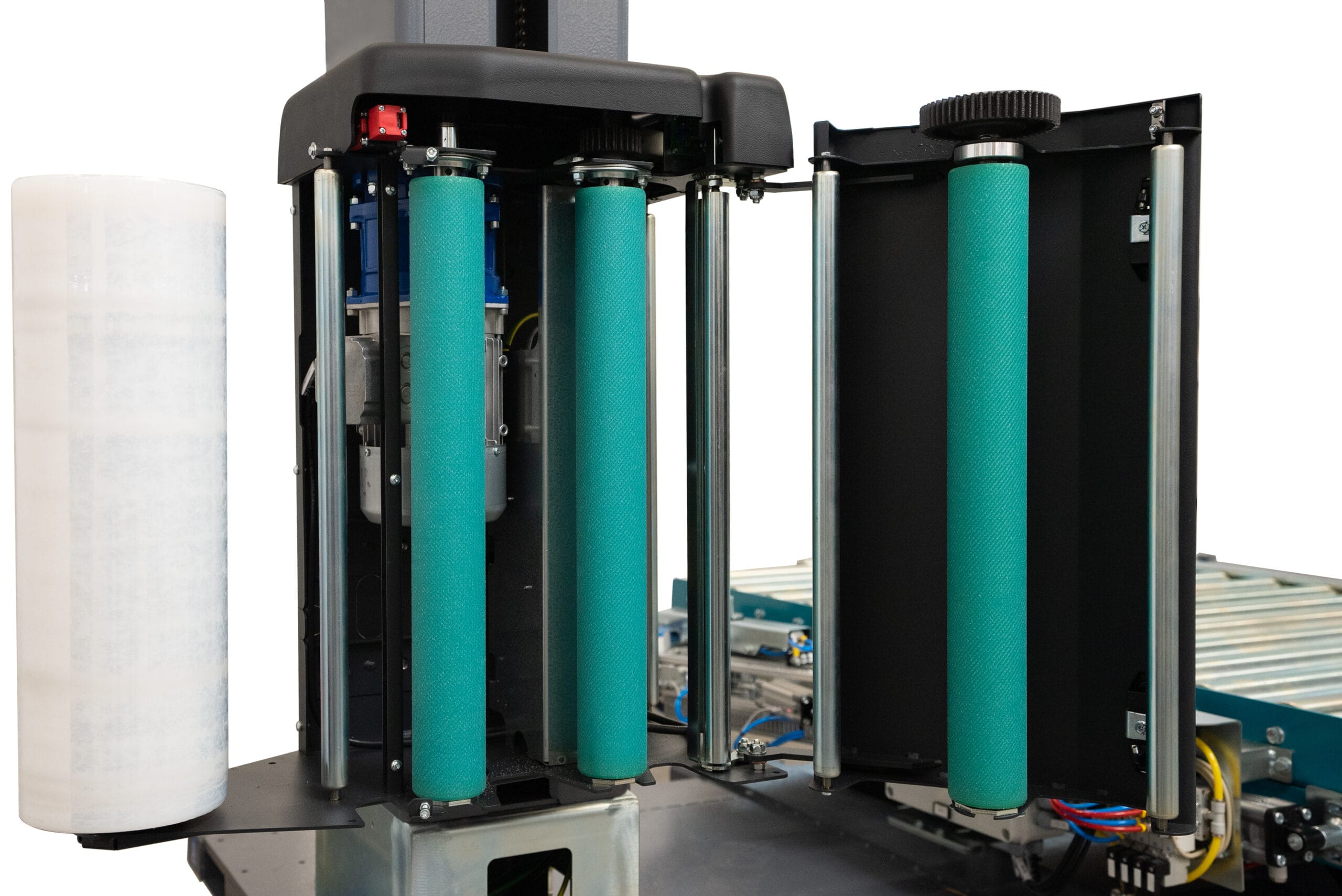

- Prestretching carriage with electronic control and fast film loading system

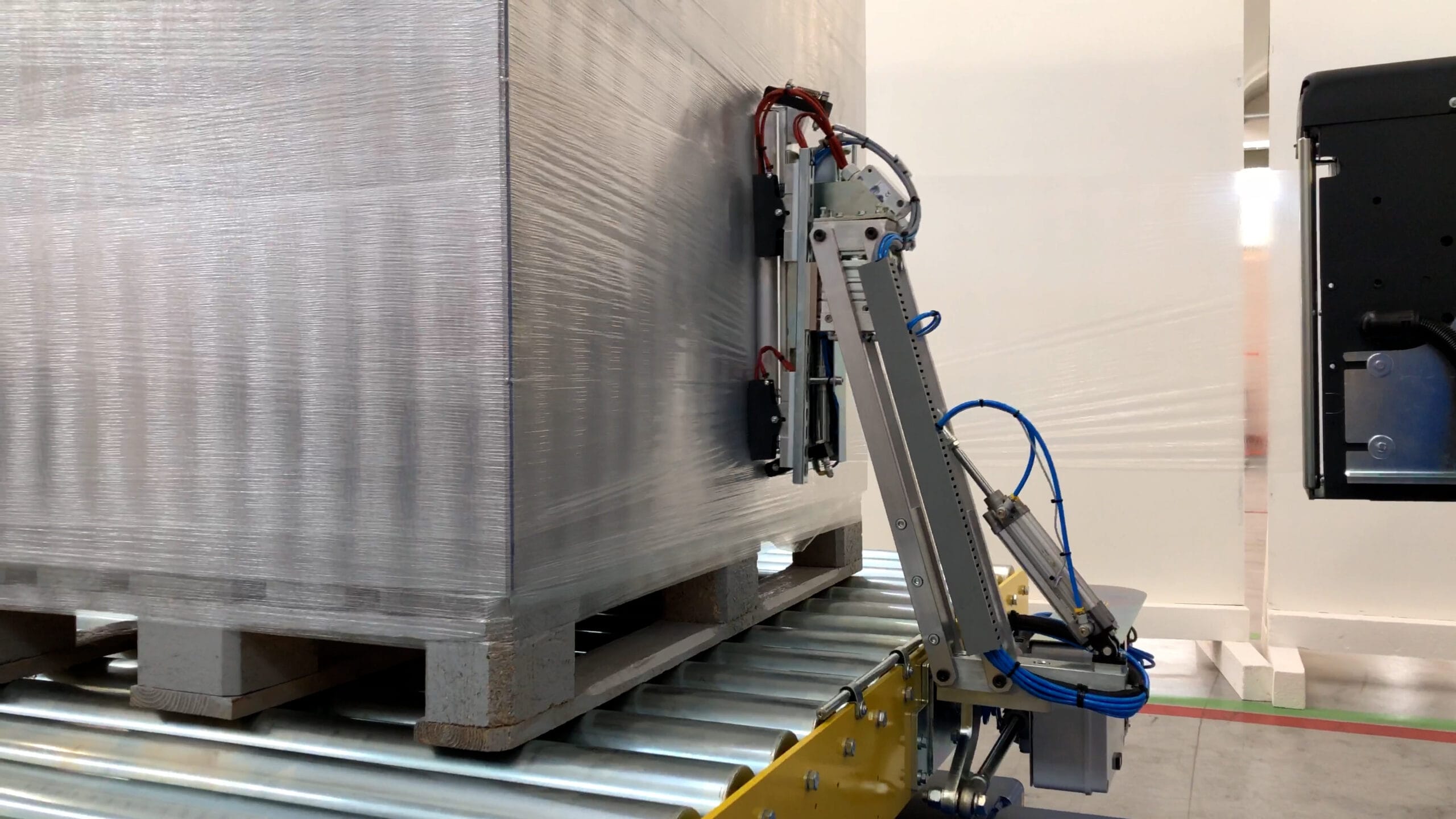

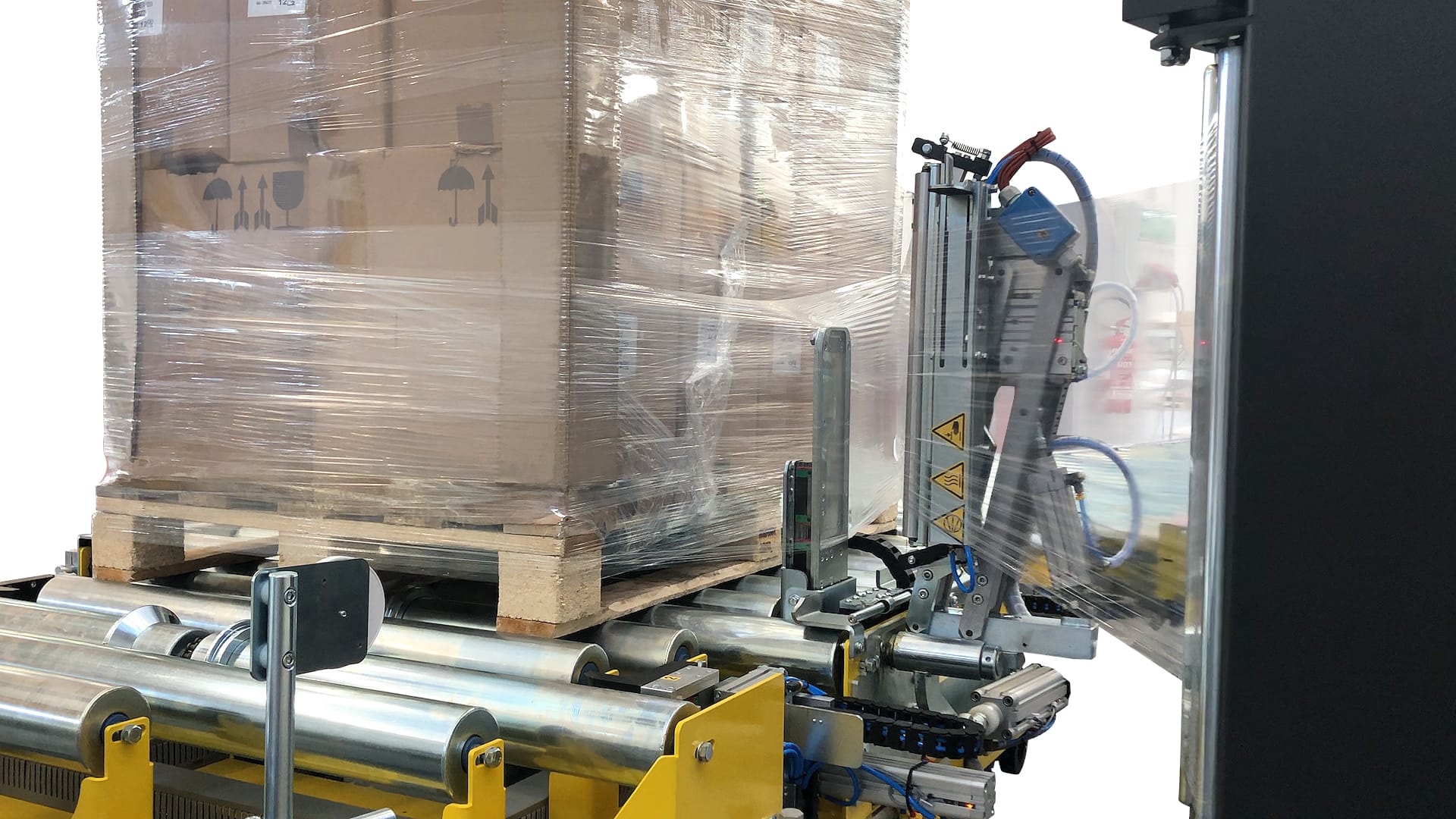

- Welding device with two Teflon plates
- Operation in a limited space
- Convenient transportation
Delivery
Delivery methods
- EXW Italy
- EXW Georgia, Tbilisi
- DDP Georgia, Azerbaijan, Uzbekistan
Spare parts delivery services
- DHL
- DPD
Payment
Payment Methods
- Legal entities - cashless payments
Rules for shipment of goods
Specifications
Terms of Use
Characteristics
- Recommended Stretch-film thickness: From 10 to 30 µm
- ** Depending on film quality and working environment: Wrapping conditions and pallet dimensions have an influence on the Max output capacity
- Turntable diameter: 2000 mm (Pallets 1000 x 1200 mm)
- Total installed power: 5 Kw
- Adjusting the rotation speed of the turntable: from 5 to 15 rpm
- Standard Wrapping height: 2400 mm
- Standard voltage: 400 V - 50/60 Hz – 3 Ph + N + T
- Electrical and motor protection system: IP 54
- Pneumatic pressure: 6 bar
- Output capacity: 45 Pallets per Hours **
