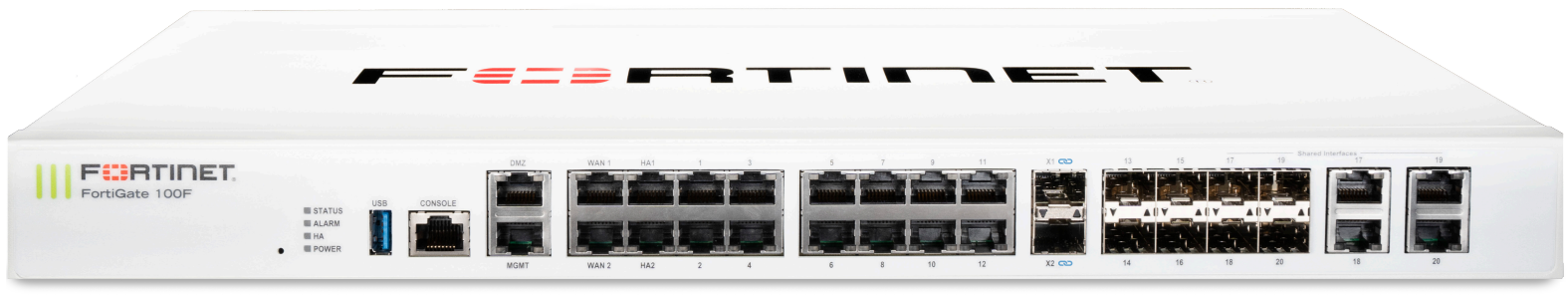

22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports,

აღწერა

System Performance — Enterprise Traffic Mix

IPS Throughput 2.6 Gbps

NGFW Throughput 1.6 Gbps

Threat Protection Throughput 1 Gbps

System Performance and Capacity

IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP)
20 / 18 / 10 Gbps

Firewall Latency (64 byte, UDP) 4.97 μs

Firewall Throughput (Packet per Second) 15 Mpps

Concurrent Sessions (TCP) 1.5 Million

New Sessions/Second (TCP) 56 000

Firewall Policies 10 000

IPsec VPN Throughput (512 byte) 11.5 Gbps

Gateway-to-Gateway IPsec VPN Tunnels 2000

Client-to-Gateway IPsec VPN Tunnels 16 000

SSL-VPN Throughput 1 Gbps

Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode) 500

SSL Inspection Throughput (IPS, avg. HTTPS) 1 Gbps

SSL Inspection CPS (IPS, avg. HTTPS) 1800

SSL Inspection Concurrent Session (IPS, avg. HTTPS) 135 000

Application Control Throughput (HTTP 64K) 2.2 Gbps

CAPWAP Throughput (HTTP 64K) 15 Gbps

Virtual Domains (Default / Maximum) 10 / 10

Maximum Number of FortiSwitches Supported 32

Maximum Number of FortiAPs (Total / Tunnel) 128 / 64

Maximum Number of FortiTokens 5000
