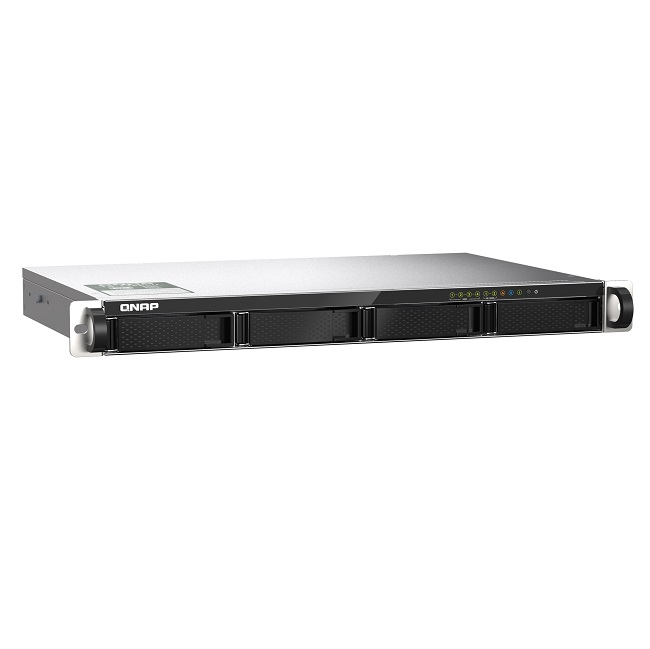

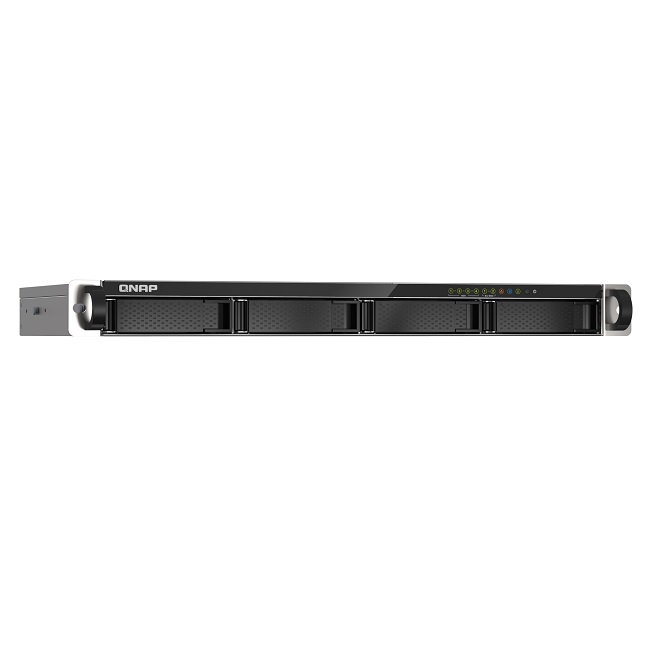

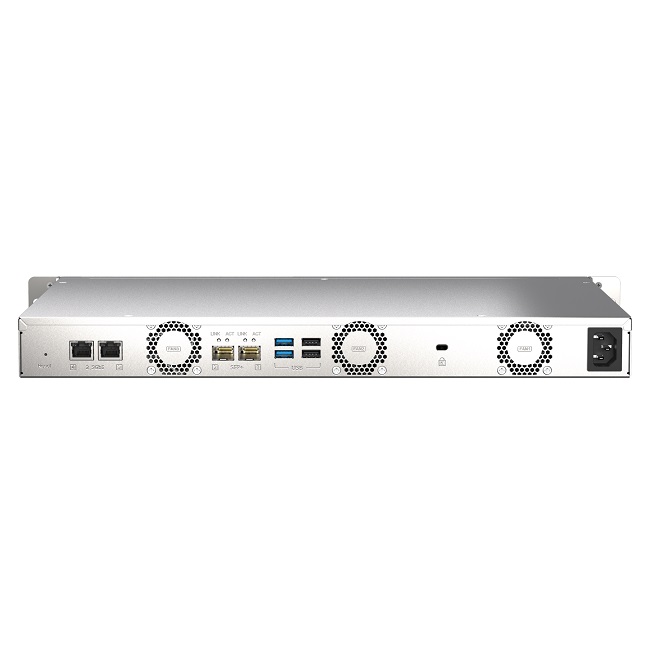

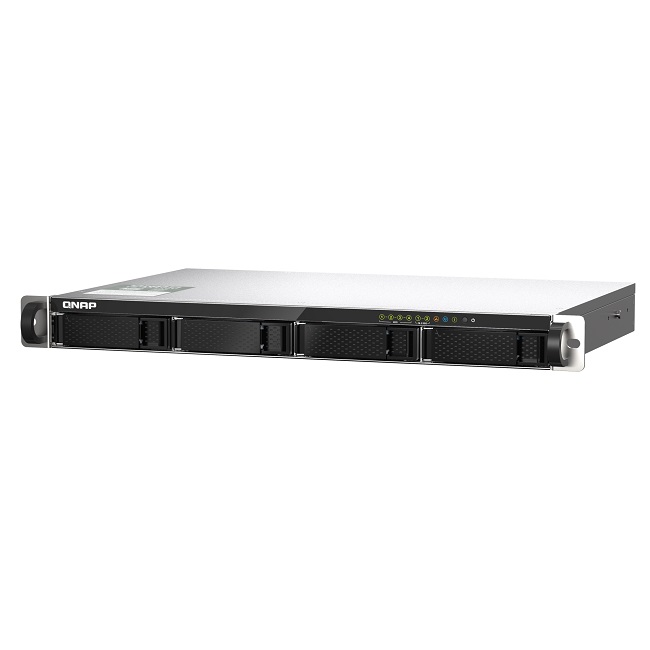

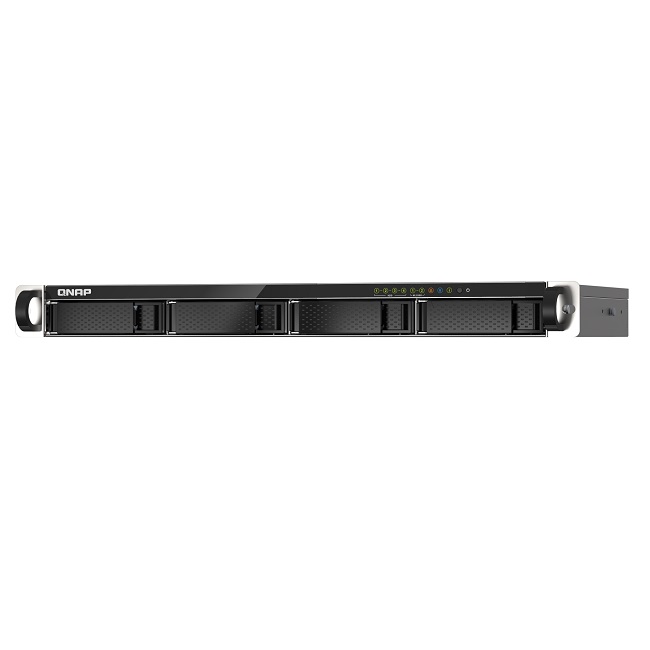

4-bay 1U short-depth 12" NAS, Marvell Octeon TX2 CN9130 / CN9131 64-bit quad-core 2.2 GHz, 4GB DDR4 SODIMM RAM (1 slot, up to 32GB), 4 x 2.5"/3.5" SATA 6Gbps HDD bay, 2 x M.2 2280 NVMe PCIe Gen3 x1 SS

აღწერა

Processor
Marvell OCTEON TX2™ CN9130/CN9131 ARMv8 Cortex-A72 4-core 2.2GHz Processor

CPU Architecture
64-bit ARM

Floating Point Module
Yes

Encryption mechanism
Yes

System memory
4 GB SODIMM DDR4 (1 x 4 GB)

Maximum memory
32 GB (1 x 32 GB)

Memory slot
1 x SODIMM DDR4

Flash memory
4 GB (dual-boot OS protection)

Drive Bay
4 3.5-inch SATA ports, 6 Gbit/s, 3 Gbit/s

Drive compatibility
3.5-inch bays:
3.5-inch SATA hard drives
2.5-inch SATA solid-state drives

Hot-swappable
Yes

M.2 Slot
2 slots M.2 2280 PCIe Gen 3 x1

SSD Cache Acceleration Support
Yes

2.5-Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M)

10-Gigabit Ethernet port
2 10GbE SFP+ ports

Wake Up over LAN (WOL)
Yes

Jumbo Frame
Yes

USB 2.0 port
2

1st generation USB 3.2 port
2

Form Factor
Installation in a rack of shallow depth 1U

LED indicators
Hard disk 1-4, Status, LAN, USB, M.2 solid-state drive 1-2

Buttons
Power, Reset

Dimensions (HxWxD)
43.3 × 430 × 292.12 mm

Net weight
4.17 kg

Operating Temperature
0–40 °C (32–104 °F)

Storage temperature
-20–70°C (-4–158°F)

Relative humidity
Relative humidity 5-95%, non-condensing, according to wet thermometer: 27°C (80.6°F)

Power unit
Power supply 100 W, 100-240 V

Power Consumption:
Hard disk Sleep mode 17.367 W

Power consumption:
Operating mode, typical 30,878 W

Fan
3 x 40 mm, DC 12V

System warning
Buzzer

Kensington Security Slot
Yes

Max. Number of simultaneous connections (CIFS) – with max. Memory
1500
