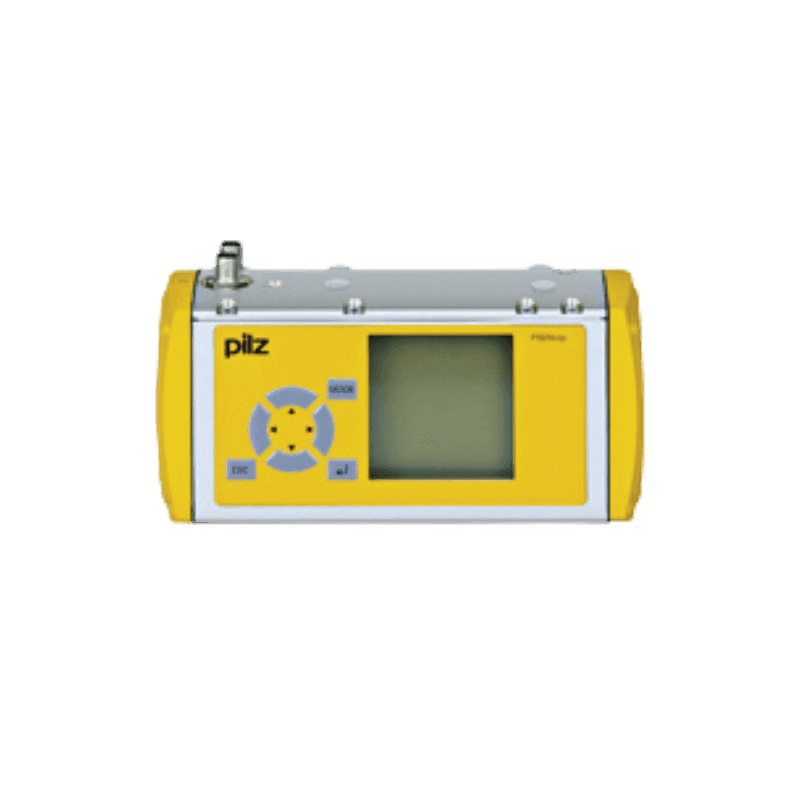

PSENvip receiver consisting of PSENvip RL D P. For automation system PSS 4000. Display left-hand. PL e SIL 3. Approved in accordance with IEC 61496-1 and EN 12622. The product will be discontinued. The successor is 584100
Data sheet
Product
Certified
Official
Dealer
Guarantee
1 year
Product
Certified
Official
Dealer
Guarantee
1 year
Description
A camera with a display to protect the left receiver is an optical sensor designed for use with a braking system. It is intended for joint use with PSS and PNOZmulti devices from Pilz. Meets the safety requirements of SIL3, ESPE type 4, PL.e and Cat.4. Pilz (PSENvip) products — the PSENvip RL DP model — provides protection in the range from 0.1 to 10 meters. The camera is powered by an alternating current source in the range of 20-30 V (voltage 24 V DC). It is equipped with five digital inputs (24 VDC, 6 A) and eight digital outputs (1-pole semiconductor output with positive switching; 24 VDC, 0.25 A). Two 8-pin M12 connectors are used for easy connection. The housing is made of aluminum, providing reliable protection against environmental influences with IP54 protection class. The operating temperature range is from 0°C to +50°C.
Original, new sealed
Advantages
- High level of security when working with PSS and PNOZmulti devices
- Flexibility in process management and monitoring
- Equipped with five digital inputs and eight digital outputs
- Reliable operation in various environmental conditions
Delivery
Delivery methods
- EXW Italy
- EXW Georgia, Tbilisi
- DDP Georgia, Azerbaijan, Uzbekistan
Spare parts delivery services
- DHL
- DPD
Payment
Payment Methods
- Legal entities - cashless payments
Rules for shipment of goods
Specifications
- Rated current 1 mA (residual current at signal "0"; overrun measurement)
- Wavelength 510-550 nm
- Connection type 2 x 8-pin M12 connectors
- Length 150 m max.
- Digital inputs 5 digital inputs (24 V DC; 6 A)
- Digital outputs 8 digital outputs
- Degree of protection IP54
