631158 — Pilz
631158 — Pilz
Data sheet
Product
Certified
Official
Dealer
Guarantee
1 year
Product
Certified
Official
Dealer
Guarantee
1 year
Description

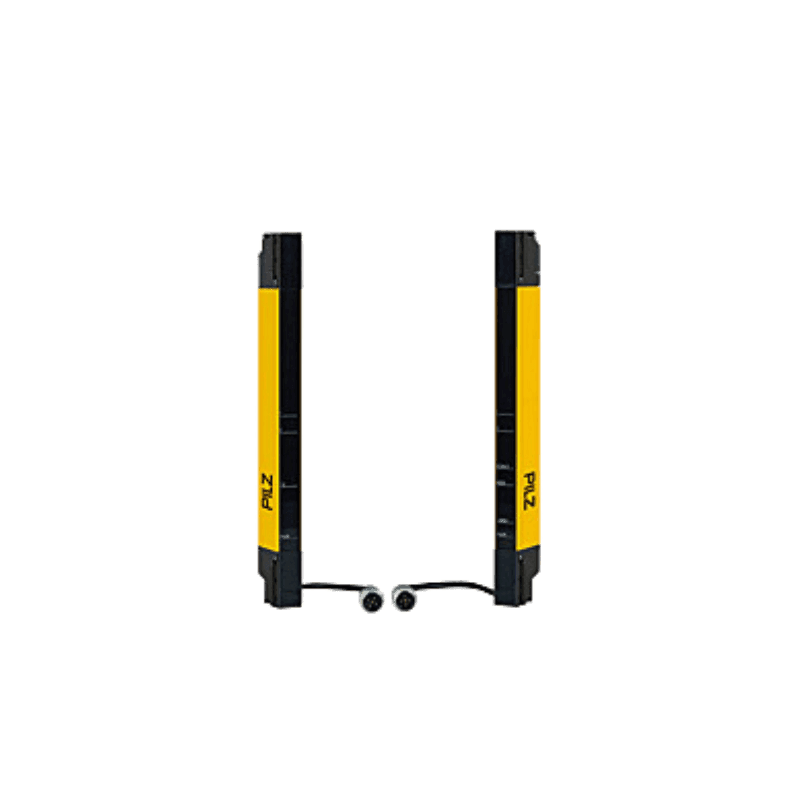

The Pilz PSENopt Slim safety light curtain provides cascading capability and no dead zone to protect fingers by detecting opaque objects measuring 14 mm. The device includes a pair of emitter and receiver, has a slim design and complies with SIL3/ESPE Type4 / PL.e/Cat4 standards. The PSEN op4F-SL -14-108/1 model provides a protective height of 1080 mm (108 beams with a beam distance of 14 mm and an infrared LED (IR) with a wavelength of 850 nm). The operating range is 0.2–6 m, and the power supply is provided from a voltage of 19.2–28.8 V DC (nominal value 24 V DC). The device is equipped with 2 digital outputs (500mA) (OSSD receiver outputs) and M12 connectors: 5-pin for the emitter and 5-pin for the receiver. The housing is made of aluminum, has a degree of protection of IP65 and is designed for use in an environment from 0 to +55°C.
Original, new sealed
Advantages
- Slim design saves space and costs
- Increased security due to the absence of dead zones
- Effective protection against penetration into the protected area and beyond due to the cascading function
Delivery
Delivery methods
- EXW Italy
- EXW Georgia, Tbilisi
- DDP Georgia, Azerbaijan, Uzbekistan
Spare parts delivery services
- DHL
- DPD
Payment
Payment Methods
- Legal entities - cashless payments
Rules for shipment of goods
Specifications
- ESPE type 4
- Operating range (m) 0.2 - 6 m
- Supply voltage (V) 24 V
- Type of supply voltage U1 DC
- Used wavelength range 850 nm
- Reaction time 16 ms
- Number of OSSD outputs 2
- Protection degree IP65
