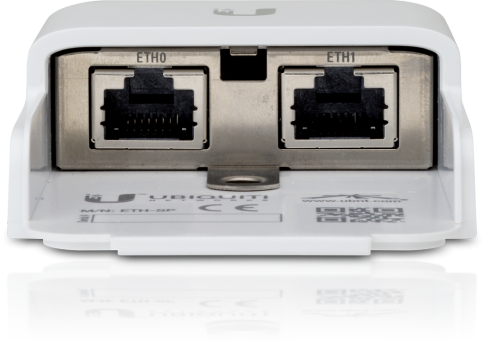

Ethernet Surge Protector G2
Dimensions:91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28″)
Weight: 80 g (2.82 oz)
Interface Connections: (2) RJ45 Female Connectors
ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage: 90V @ 100V/s
Maximum Impulse Spark-over…
Description
Dimensions:91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28″)
Weight: 80 g (2.82 oz)
Interface Connections: (2) RJ45 Female Connectors
ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage: 90V @ 100V/s
Maximum Impulse Spark-over Voltage 700V @ 1kV/µs
Discharge Current: 5kA (Maximum) 0.5kA (Normal)
Maximum Insulation Resistance: 1G ohm @ 50V
Maximum Capacitance: 1.0 pF @ 1 MHz
Data Line Protection: RJ45 10/100/1000 Ethernet
IEEE 802.3af PoE Support: Yes
Shock and Vibration Certification: ETSI300-019-1.4 Standard
Operating Temperature: -30 to 65° C (-22 to 149° F)
Operating Humidity: 10 to 90% Noncondensing
