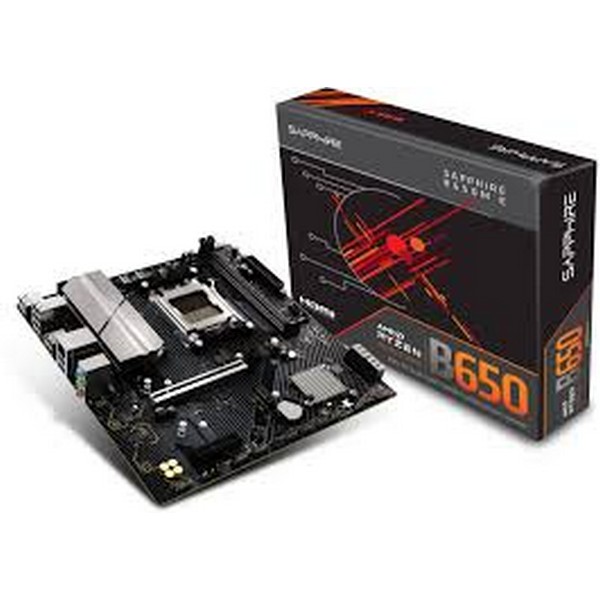

Sapphire B650M-E AM5

Product Description:

The Sapphire B650M-E motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors and DDR5 memory (up to 96GB). It offers high-performance computing with multiple M.2 and SATA storage options, PCIe slots, and a wide range of USB ports for connectivity.

Key Features:

• Socket: AM5
• Chipset: AMD B650
• Memory Type: DDR5/DIMM, 2 x Slots, Max 96GB
• Processor Support: AMD Ryzen 9000, 8000, 7000 Series
• Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4
• Storage: 1 x PCIe 5.0 M.2, 1 x PCIe 4.0 M.2, 4 x SATA
• USB Ports: Rear: 6 × USB 2.0, 2 × USB 3.2 Gen1 Type-A; Front: 1 x USB 3.2 Gen1 header, 2 x USB 2.0 Headers
• Back I/O Ports: 1 × DisplayPort, 1 × HDMI, 1 × RJ45 LAN, 3 × Audio Jacks, 6 × USB 2.0, 2 × USB 3.2 Gen1 Type-A
• Internal I/O Ports: 1 x CPU fan pin, 1 x water cooling pump pin, 3 x system fan pins, 3 x 5V ARGB pins, 1 x front audio pin, 1 x front panel pin, 1 x clearing CMOS jumper, 1 x speaker pin, 1 x serial port pin
• Form Factor: Micro ATX

[p/n 52112-04-40G] SKU: I36985
