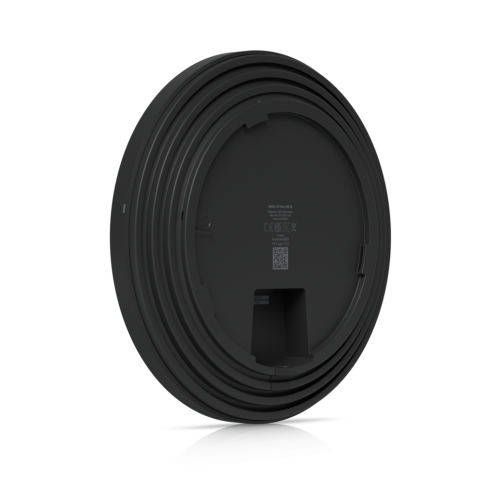

UniFi U7 Pro XG

Description

UniFi U7-Pro XG-B is a next-generation wireless access point designed to deliver high-performance, stable, and reliable Wi-Fi connectivity across a wide range of environments. It is suitable for building both small and large-scale wireless networks.

The device is ideal for offices, hotels, educational institutions, retail stores, and residential environments. As part of the UniFi ecosystem, it enables centralized management of multiple access points, allowing for easy network expansion and efficient administration.

Product page on the manufacturer’s website:https://techspecs.ui.com/unifi/wifi/u7-pro-xg

Note:
The device is sold without a PoE adapter.
If you do not plan to power it via a PoE switch, you will need to use a PoE adapter.

Characteristics

• Generation, Standard: Wi-Fi 7, 802.11be;
• 6 GHz Speed: 5.8 Gbps
• 5 GHz Speed: 4.3 Gbps
• 2.4 GHz Speed: 0.68 Gbps
• 6 GHz Antenna Gain: 6 dBi
• 5 GHz Antenna Gain: 5 dBi
• 2.4 GHz Antenna Gain: 4 dBi
• 6 GHz Max Transmit Power: 24 dBm
• 5 GHz Max Transmit Power: 26 dBm
• 2.4 GHz Max Transmit Power: 23 dBm
• Network Interface: 1x 10GbE RJ45;
• Management Interface: UniFi Network Application;
• IP Rating: -;
• Operating temperature: -30 °C – 40 °C
• Humidity: 5 % – 95 %
• Power Method: PoE 802.3at;
• Operating Voltage Range PoE: 42.5 V – 57 V
• Maximum Power Consumption: 22 W
