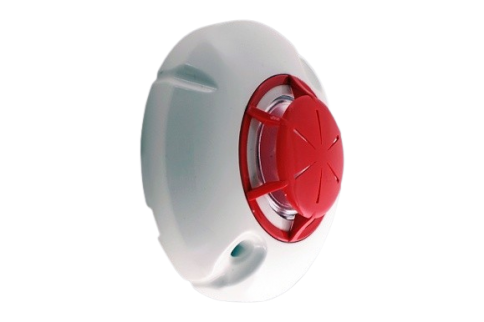

Conventional indoor sounder

აღწერა

DB 8000S is a common base, applicable for the standard fire alarm installations. It is used with the conventional indoor sounder 8204C.

Supply voltage: – (15-30) VDC
Current consumption in fire mode: – 9 mA on 24 VDC
Sound level, type “Slow whoop” on 1m: 90dB (А)
Frequency, pattern “Slow whoop”: 0.5 – 1,2 kHz
Operation temperature: -10 °C to +55 °C
Dimensions: Ø100, h 47 mm
Weight (base included): 0.075 kg
Protection: IP 40
Construction: ABS
Mounting: Using bases of series 8000S
