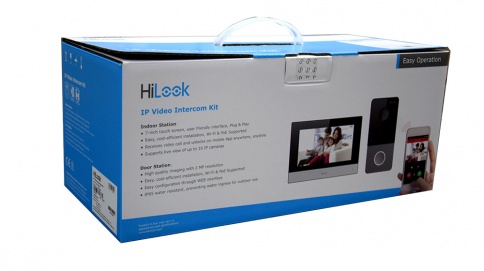

IP Video Intercom Kit

აღწერა

Door Station/System Parameters
Operation System: Embedded Linux operation system
Flash: 32 MB
RAM: 128 MB

Door Station/Video Parameters
Camera: 2MP HD camera
Night Vision: Low illumination IR supplement mode:3 m
Backlight Compensation: Support
Digital Noise Reduction: Support
WDR: True WDR
Field Of View: Horizontal: 129° Vertical: 75°
Video Compression Standard: H.264
Stream: Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
Motion Detection: Support
Flash-Avoid Frequency: 50 Hz, 60 Hz

Door Station/Audio Parameters
Audio Input: Built-in omnidirectional microphone
Audio Output: Built-in loudspeaker
Audio Quality: Noise suppression and echo cancellation
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Intercom: Two-way audio communication

Door Station/Network Parameters
Network Protocol: TCP/IP, RSTP
Wired Network: 10/100 Mbps Ethernet

Door Station/Device Interfaces
RS-485: 1
Alarm Input: 4
Debugging Port: 1
Grounding: 1
TAMPER Switch: 1

Door Station/General
Power Consumption: ＜ 10 W
Working Temperature: -40° C to 53° C(-40° F to 127.4° F)
Working Humidity: 10% to 95%
Dimension: 138 mm × 65 mm × 27 mm
Installation: Surface mounting
Protection Level: IP65
Indicator: 2
Power Supply: IEEE802.3af, standard PoE, 12 VDC

Indoor Station/System Parameters
Operation System: Embedded Linux operation system
Memory: 128 MB
Flash: 32 MB

Indoor Station/Display Parameters
Display Screen: 7-inch colorful TFT screen
Display Resolution: 1024 × 600
Operation Method: Capacitive touch screen

Indoor Station/Audio Parameters
Audio Input: Built-in omnidirectional microphone
Audio Output: Built-in loudspeaker
Audio Quality: Noise suppression and echo cancellation
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps

Indoor Station/Network Parameters
Wired Network: 10/100 Mbps self-adaptive
Wireless Network: Wi-Fi 802.11 b/g/n
Protocol: TCP/IP, SIP, RTSP,
RS-485: 1 RJ-45 10/100 Mbps self-adaptive,

Indoor Station/Device Interfaces
RS-485: 1
Alarm Input: 8-ch alarm inputs
Relay Output: 2
TF Card: Max to 32 G, SD 2.0 or lower version

Indoor Station/General
Power Consumption: ≤ 6 W
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Dimension (L X W X H): 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
