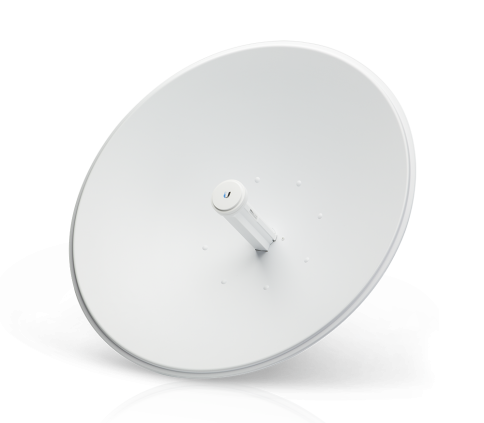

airMAX PowerBeam 5AC 620

Описание

UBNT-PBE-5AC-620 supports up to 450+ Mbps real TCP/IP throughput.
Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the PowerBeam.

Improved Noise ImmunityThe PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated DesignThe PowerBeam models are available in two form factors:

• All-in-One Design The Ubiquiti Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The PowerBeam gets maximum gain out of the smallest footprint.
• Dish Reflector Design Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing increased performance from its faster processor and innovative mechanical design at a low cost, the PowerBeam is extremely versatile and cost-effective to deploy

Main Specifications

Operating Frequency: 5150 — 5875 MHz
Gain: 29 dBi
Built-In Mechanical Downtilt: +15° to -15°
Output Power: 22 dBm
Polarization: Dual Linear
Max. VSWR: 1.6:1
Channel Sizes» 10/20/30/40/50/60/80 MHz
Power Supply: 24V, 0.5A Gigabit PoE

Dimensions: 620 x 620 x 386 mm
Weight: 6.4 kg
Operating Temperature: -40 to 70° C

Processor Specs: Atheros MIPS 74Kc, 720 MHz
Memory: 128 MB DDR2, 8 MB Flash
Networking Interface: (1) 10/100/1000 Ethernet Port

Characteristics

• Frequency Range: 5150-5875 MHz
• Operating Frequency: 5 GHz;
• Channel Width (PtMP Mode): 10/20/30/40 MHz;
• Channel Widt (PtP Mode): 10/20/30/40/50/60/80 MHz;
• Transmi antenna gain: 29 dBi
• Max. throughput: 0.45 Gbps
• Max. Distance: 25 Km
• Polarization: Horizontal/vertical;
• Network Interface: 1x GbE RJ45;
• Power Supply: +
• Power Method: PoE; DC;
• PoE Standards: Passive PoE;
• Power consumption: Max: 8.5 W
• Operating temperature: -40 °C — 70 °C
• Certificates: FCC, IC, CE, RoHS
