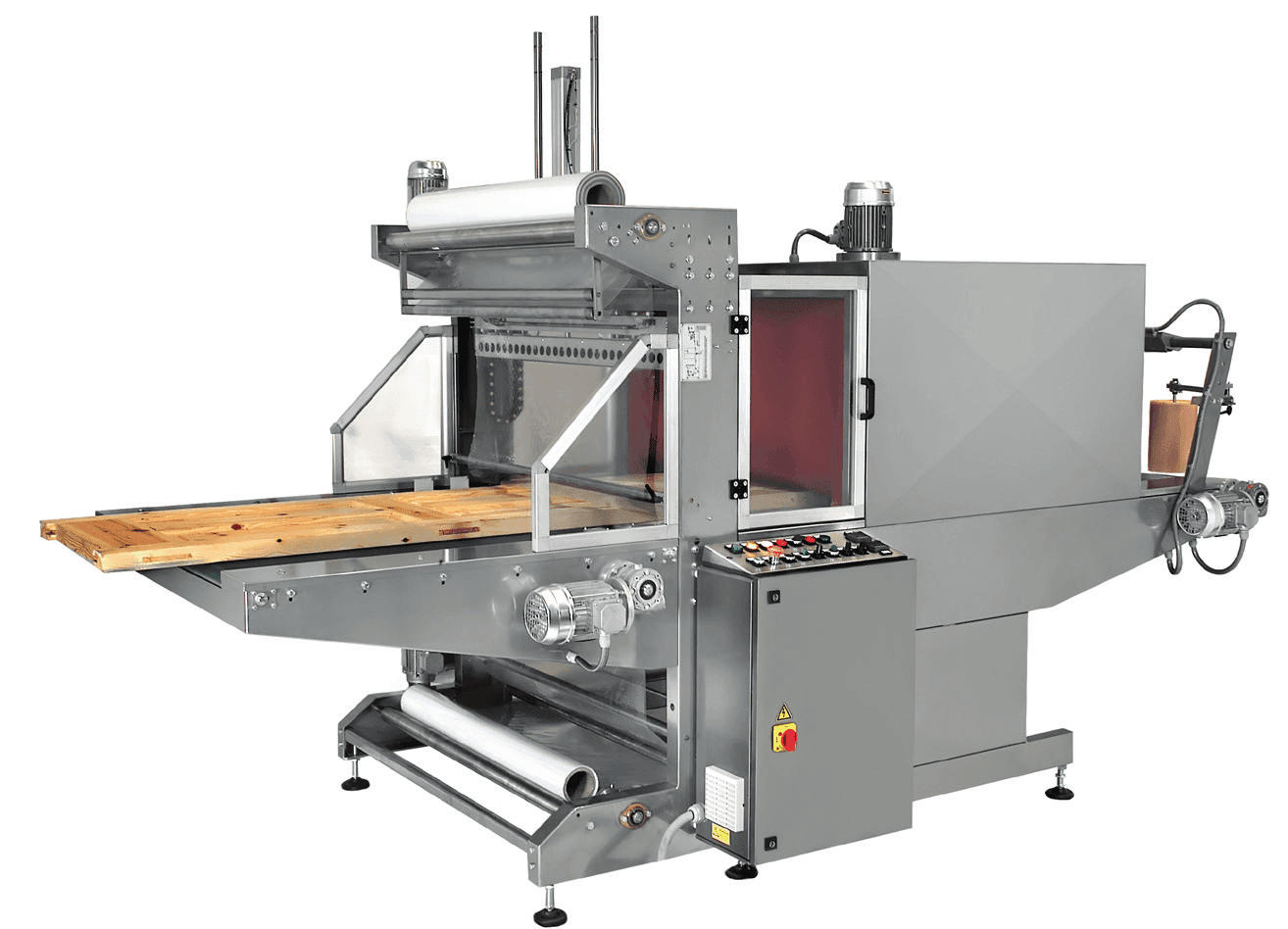

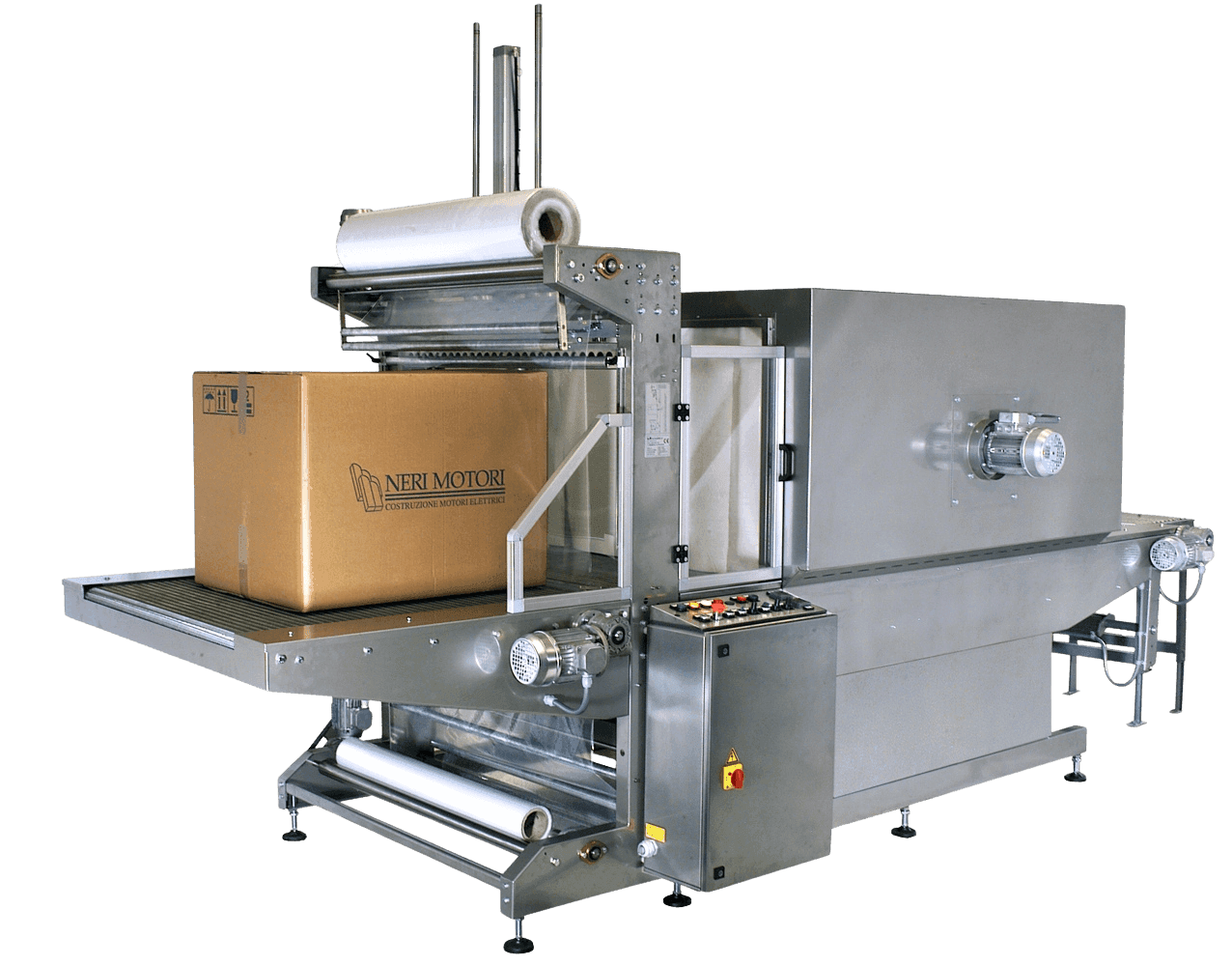

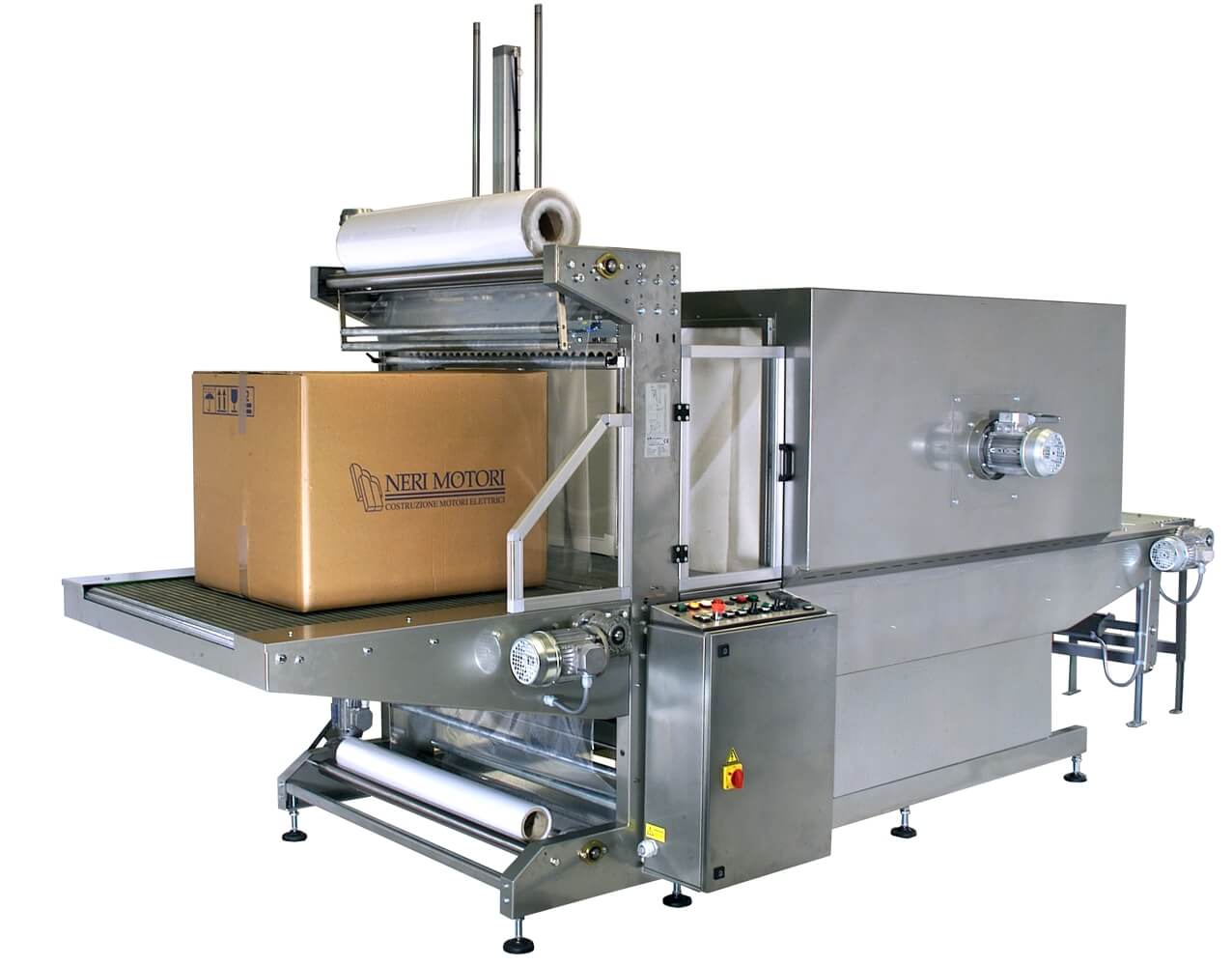

Automatic shrink-wrapper SFE-NF STANDART

On backorder

Automatic shrink wrapper with in-line motorized infeed belt. Possibility of total closing the pack either by film overlapping or by side sealing bars integrated in the monoblock frame

Catalog

Ask a question

Product
Certified

Official
Dealer

Guarantee
1 year

Description

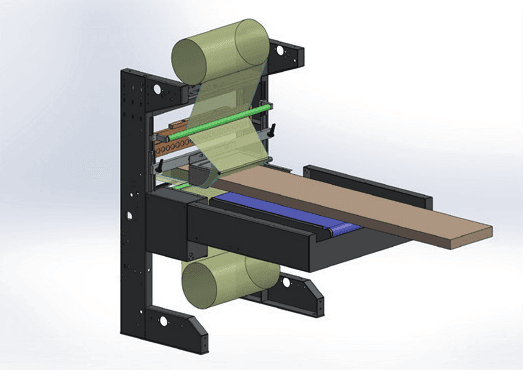

Automatic shrink-wrapper with in-line infeed belt. Two-reels of shrinkable polyethylene one-sheet (LDPE). In-line motor-operated infeed belt. Ideal to pack single products, especially large-sized and with no limitations in length. Total closing of the pack either by overlapping the film edges or by the optional side-sealer station. Available either in mono-bloc version or with sealer separated from the tunnel. Customised solutions available for high-speed productions.

Advantages

Longer infeed belt
High speed version
Customized Ral colour
Customized components
Forming Box
Short and/or light product device

Specifications

3 independent adjustable speed belts: infeed, parking and tunnel belts.
Touch screen HMI 7 inches with the possibility to adjust machine speed.
PLC with Ethernet connection: ready for data exchange between machine and customer ERP. Modem for remote technical
assistance.
Machine suitable for high-speed production (up to 20 packs/minute). Short and/or light product stability is improved by
the independent parking belt between sealer and tunnel.
KISSING BELTS system: the infeed and parking belt are shifting to help short and/or light products to travel over the
sealing bar (optional).

Model SFE-NF: SFE 1100, SFE 1500, SFE 600, SFE 800
Maximum product height (Customizable heights and voltages): 280/420-560 mm, 330/420-760 mm, 400/600-1070 mm, 400/600-1970 mm
Maximum recommended film width: 1000 mm, 1400 mm, 500 mm, 700 mm
Output capacity: 4/15 packs/min
